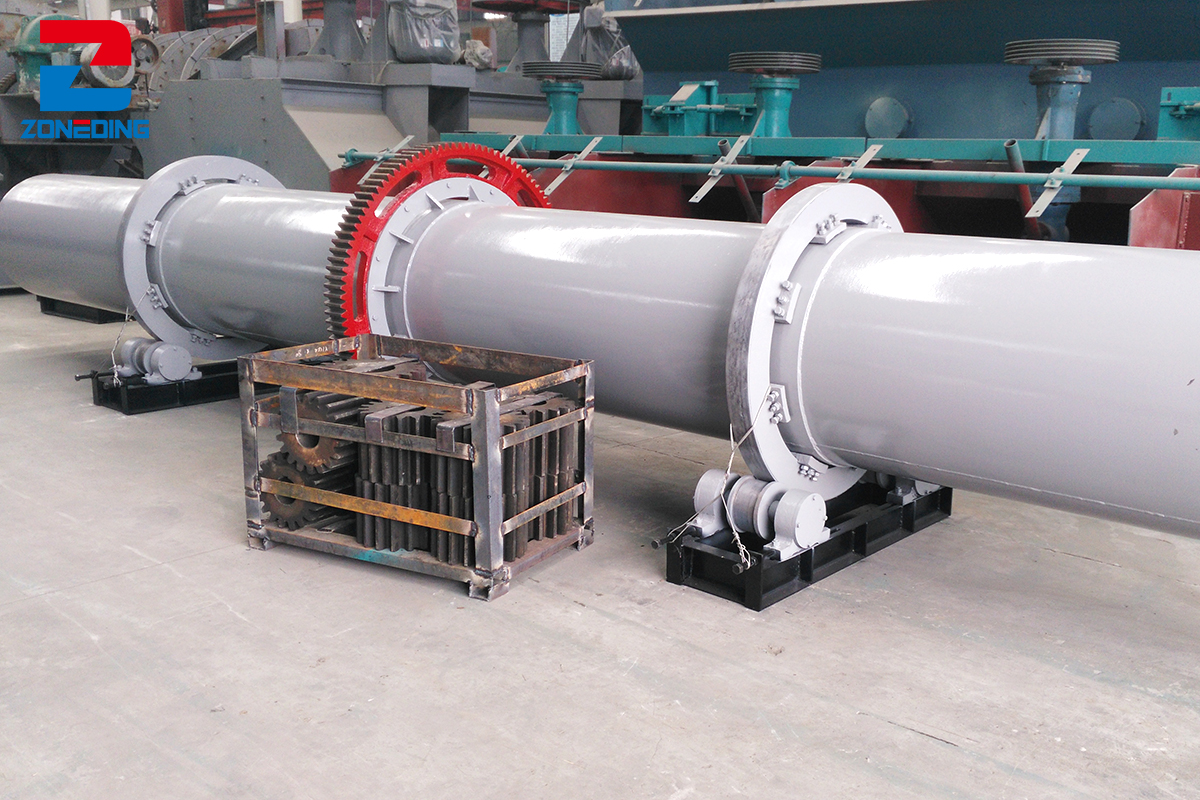

Cassava Residue Dryer
Cassava residue can be used as livestock feed after drying. The cassava residues dryer can dehydrate various cassava dregs a moisture content of about 80% to less than 12%.
The cassava residue dryer is equipped with special dehydration, temperature adjustment, lifting, guiding and dispersing devices, which effectively avoids sticking and blocking.
Capacity
63.5-268t/d
Raw Material Moisture
35~60%
Dry Material Moisture
15% (Adjustable)
Power
78-135kw
Application of Cassava Residue Dryer
Our cassava residue dryer is widely suitable for drying cassava and potato residues, bagasse, cassava pulp, bean dregs, pomace, spent grain, etc.
Advantages of Bean Pulp Dryer
- The system adopts special heat source and heat preservation system to effectively reduce energy consumption.
- The rotary dryer has a unique sealing structure and is equipped with a perfect dust removal device to prevent dust from overflowing.
- The operating parameters can be changed according to the properties of different materials (moisture, ash content, particle size composition), so that the materials can form a stable full-broken curtain in the drying cylinder, and the quality and heat exchange are more sufficient.
- The whole drying system adopts centralized electrical control, which has a high degree of automation and is easy to operate.
- The rotary dryer can be connected with subsequent sections such as crushing, mixing, pelletizing, and packaging to produce feed pellets.
Cassava Residue Dryer Working Principle
The cassava residue drying system is composed of combustion machine, hot air stove, cassava residue dryer, bag dust removal equipment, induced draft fan, power distribution cabinet, etc. In the dryer cylinder, the special material guiding plant, lifting plate, crushing device can effectively prevent the adhesion, agglomeration, and blockage of cassava residue. It is suitable for drying various sweet potato residues, cassava residues, starch residues, distiller’s grains and other materials.
Specification
Drum Dryer
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity(%) | Highest Inlet Air Temperature(℃) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
