Clay Dryer
The clay rotary dryer is designed according to the characteristics of clay materials and the actual processing needs of users. It adopts advanced drying technology suitable for clay materials, selects high-quality materials, and is built through a series of technological processes. The drying equipment has good quality, long service life and outstanding effect of energy conservation and environmental protection. After the clay is dried by the clay dryer, the finished product is excellent, which can meet the processing needs of users.
Capacity
300-2500TPD
Raw Material Moisture
25±5%
Dry Material Moisture
≤12%
Power
109-1200kw
Clay Dryer
Clay Rotary Dryer Advantages
1.The inner part of the clay dryer is made of wear-resistant manganese plate, which is 3-4 times more wear-resistant than ordinary steel plate.
2.The drying system has a unique sealing structure, no thermal energy leakage.
3. The discharge temperature is less than 60 ℃, the dried materials can be directly fed into the warehouse without cooling.
4. Low investment, low operating cost and and short investment recovery time.
5. Multiple heating sources. Customers can choose the heating source according their situation, we can design the customized solutions.
Clay Rotary Dryer Application
The clay dryer is mainly used for drying bentonite, kaolin, bauxite, mineral soil and other materials. It is mainly used for drying materials with certain humidity or particle size in mineral processing, building materials, metallurgy, chemical industry and other industries.

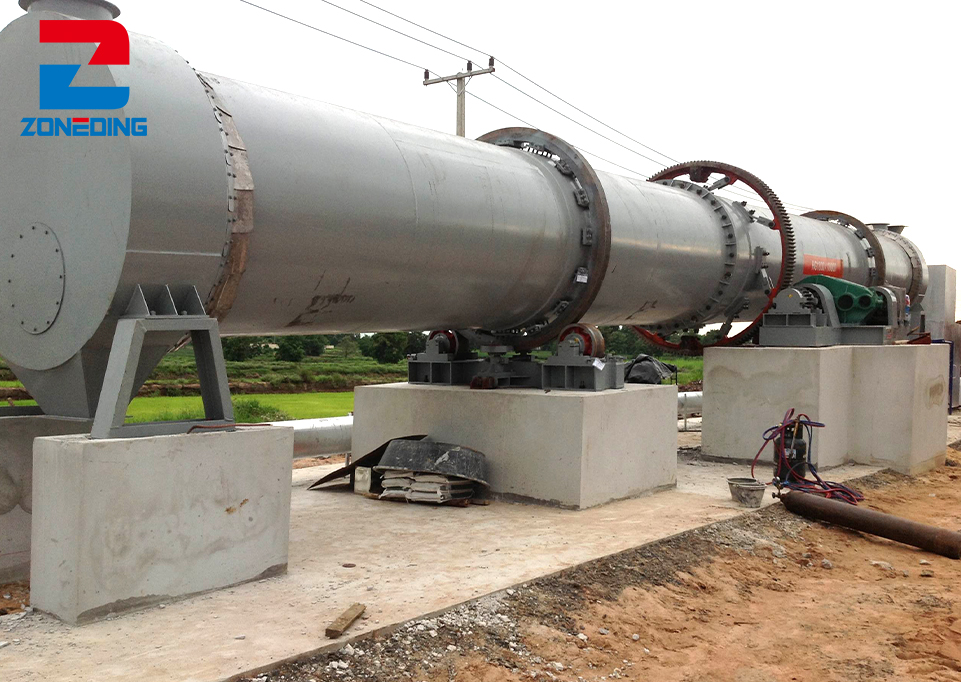

Customer site
Specification
Sludge Dryer
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity(%) | Highest Inlet Air Temperature(℃) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
