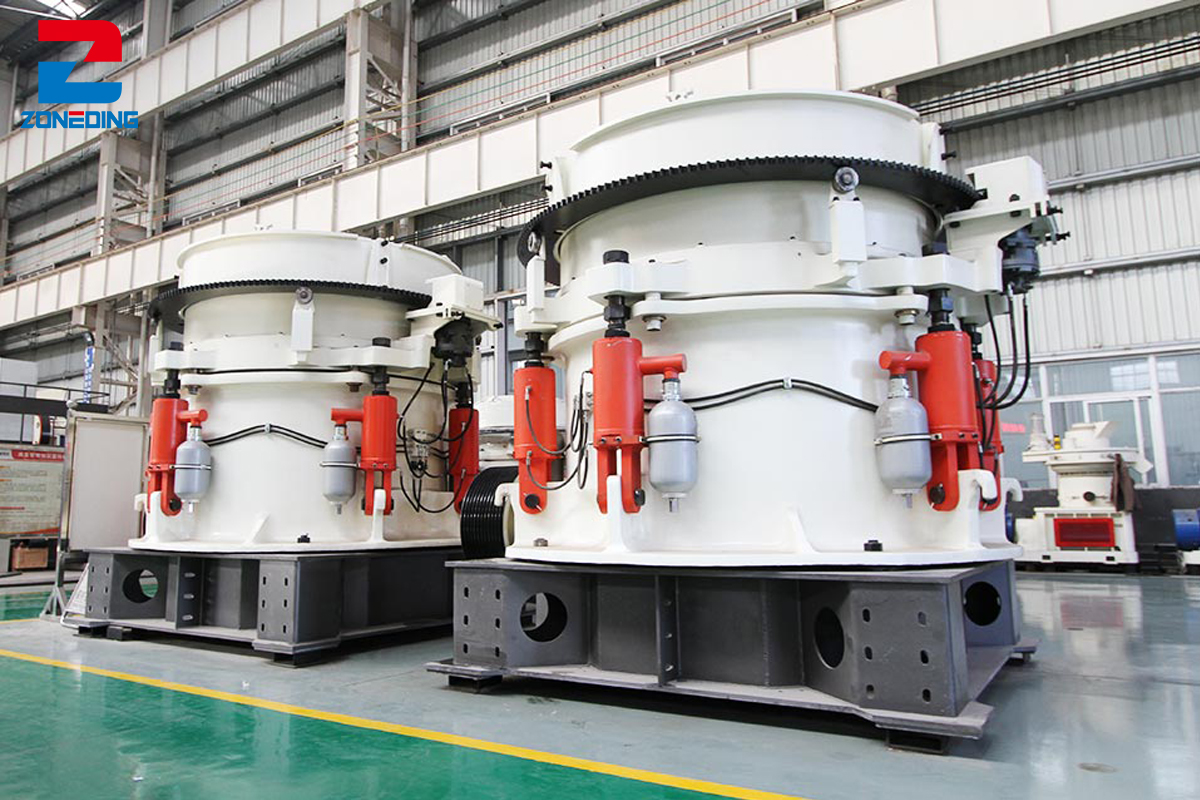

Hydraulic Cone Crusher
Hydraulic Cone Crusher, a cutting-edge product in the crushing industry, integrates modern mechanical technology, hydraulic technology and electronic technology, and is designed for crushing ores and rocks of various hardness. With compact structure, easy operation and stable performance, it is an ideal crushing equipment for mining, metallurgy, construction, highway and railroad industries.
Capacity
90-1200 TPH
Inlet Size
20-353mm
Min. Output Size
6mm
Features of Hydraulic Cone Crusher
- High-efficiency crushing capacity: adopting advanced crushing cavity design, it has high crushing efficiency, large output and low energy consumption, which saves your cost and improves efficiency.
- Wear-resistant and durable: the key components are made of high-strength alloy materials, precision machining and heat treatment, wear-resistant and durable, with long service life.
- Intelligent control: Equipped with advanced hydraulic system and electronic control system, it realizes automatic adjustment of crushing strength, easy operation, safe and reliable.
- Environmental protection and energy saving: optimize the crushing process, reduce dust emission, meet the environmental protection requirements; at the same time, low energy consumption design, reduce operating costs.
- Convenient maintenance: modular design makes replacement of wearing parts more convenient, reduces downtime and improves equipment utilization.
Hydraulic Cone Crusher Structure
The performance features of hydraulic cone crusher are highlighted in the following aspects:
- Production capacity
- Automation
- Finished grain shape
- Discharge port
- Lubrication system
- Service life
How does a Hydraulic Cone Crusher work?
The working principle of Hydraulic Cone Crusher is that the main shaft is driven by electric motor to rotate, which drives the crushing cone to do rotary oscillation movement in the fixed cone liner, and then squeezes, grinds and shears the materials, thus realizing the crushing of materials. The crushed material is discharged through the discharge port to complete the crushing process. Meanwhile, the hydraulic system and electronic control system monitor and adjust the crushing strength in real time to ensure the crushing effect and stable operation of the equipment.

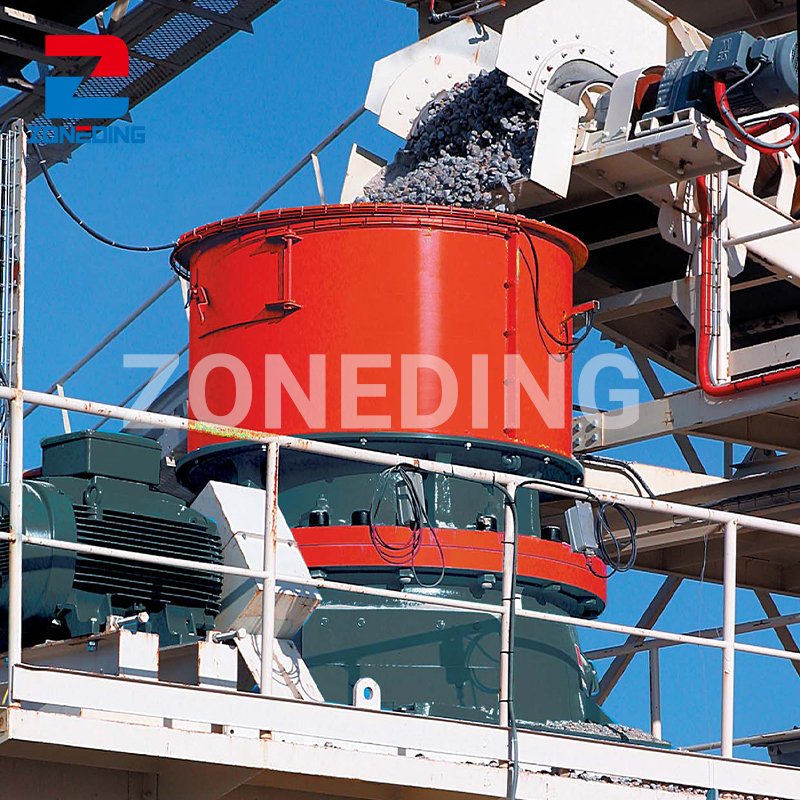

Customer Site
Specification
hydraulic cone crusher
| Model | Cavity | Diameter of large end of crushing cone （mm） | Width of Feeding Opening（mm） | Max.feeding size (mm) | Adjusting Range of Discharge Opening (mm) | Processing capacity（t/h） | Main motor power（kw） | Weight of Main Machine （t） |
| HP200 | C1 | 900 | 210 | 178 | 22~38 | 160~250 | 160 | 10.1 |
| C2 | 155 | 132 | 18~38 | 145~250 | ||||
| C3 | 130 | 110 | 14~38 | 120~250 | ||||
| F1 | 118 | 100 | 12~25 | 108~210 | ||||
| F2 | 90 | 76 | 10~25 | 81~210 | ||||
| F3 | 70 | 60 | 8~25 | 72~210 | ||||
| HP300 | C1 | 1100 | 235 | 200 | 26~45 | 230~445 | 220 | 17.8 |
| C2 | 211 | 180 | 20~45 | 200~445 | ||||
| C3 | 135 | 115 | 16~45 | 180~445 | ||||
| F1 | 124 | 105 | 14~25 | 160~220 | ||||
| F2 | 96 | 82 | 12~25 | 140~220 | ||||
| F3 | 70 | 60 | 8~25 | 120~220 | ||||
| HP400 | C1 | 1400 | 330 | 280 | 26~51 | 270~630 | 315 | 25 |
| C2 | 200 | 170 | 22~51 | 243~630 | ||||
| C3 | 152 | 130 | 16~51 | 210~630 | ||||
| F1 | 135 | 115 | 12~25 | 162~370 | ||||
| F2 | 106 | 90 | 10~25 | 126~370 | ||||
| F3 | 80 | 68 | 8~25 | 104~370 | ||||
| HP500 | C1 | 1500 | 335 | 285 | 32~51 | 365~790 | 400 | 34.1 |
| C2 | 229 | 190 | 25~51 | 328~790 | ||||
| C3 | 180 | 152 | 19~51 | 280~790 | ||||
| F1 | 152 | 130 | 13~25 | 202~450 | ||||
| F2 | 124 | 105 | 10~25 | 158~450 | ||||
| F3 | 88 | 75 | 8~25 | 122~450 |
