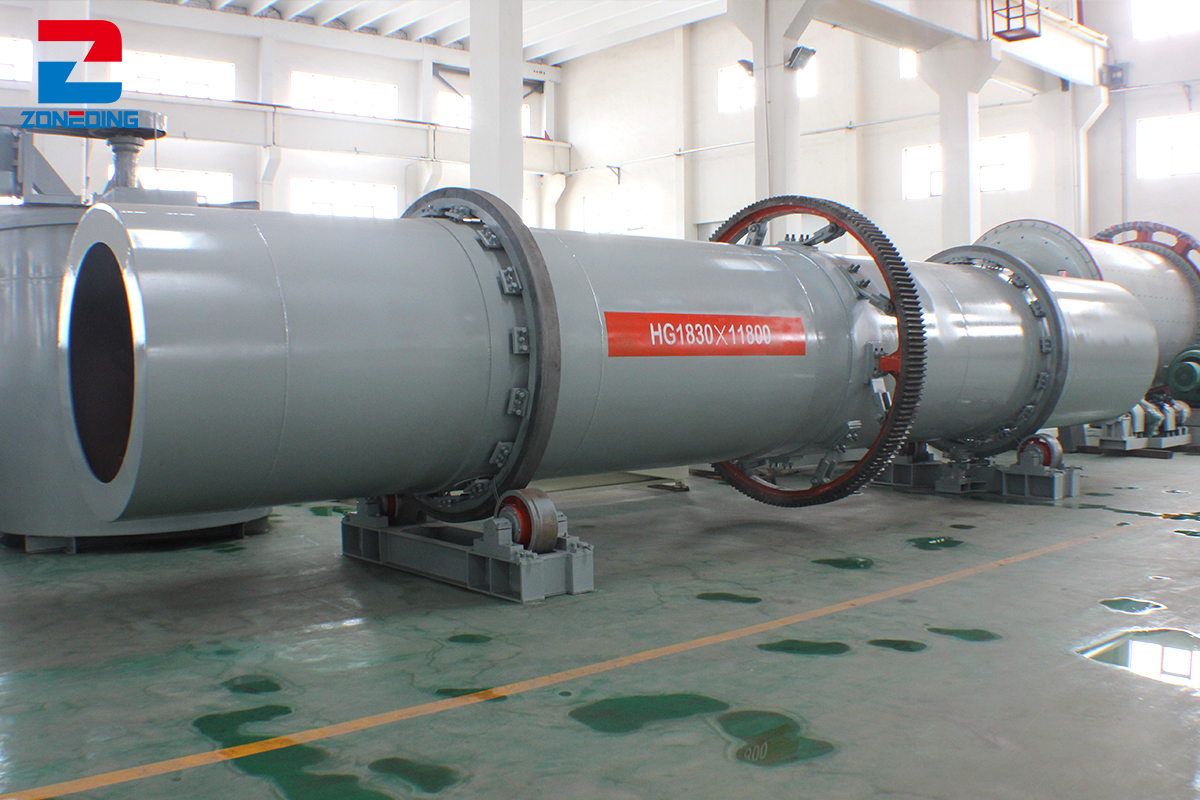

Mineral Dryer
Our mineral rotary dryer is special designed for drying various mineral raw materials. The mineral materials can be dried quickly with low cost. The drying time and temperature can be controlled in the whole process. Besides, the operation cost is greatly reduced, and the comprehensive economic benefit is improved.
Capacity
300-2500TPD
Raw Material Moisture
25±5%
Dry Material Moisture
≤12%
Power
109-1200kw
Mineral Rotary Drum Dryer Application
The mineral rotary dryer is special designed for drying bentonite, clay, limestone, gold ore, iron ore, pyrite, river sand, copper ore and other materials. It is widely used in mineral processing, metallurgy, building materials, chemical industry and other industries.
Features of Mineral Rotary Dryer
- 1.The inner part of the mineral dryer is made of wear-resistant manganese plate, which is 3-4 times more wear-resistant than ordinary steel plate.
- 2.The drying system has a unique sealing structure, no thermal energy leakage.
- 3. The discharge temperature is less than 60 ℃, the dried mineral materials can be directly fed into the warehouse without cooling.
- 4. Low investment, low operating cost and and short investment recovery time.
- 5. Multiple heating sources. Customers can choose the heating source according their situation, we can design the customized solutions.
Working Principle of Mineral Rotary Drum Dryer
Mineral raw materials are fed into the hopper through belt conveyor, and then enter the drying system through feeding mechanism. The guide device installed in the rotary dryer lifts the materials to the top and then drops them. When the material falls, it is broken by the high-speed rotating blade in the dryer. It is repeated until move to the outlet. At the same time, the hot air generated by the high-temperature heat source enters the dryer to fully contact with the materials, so that the materials can be dried quickly, and then discharged through the conveyor at the discharge end.
Customer site
Specification
Mineral Dryer
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity(%) | Highest Inlet Air Temperature(℃) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
