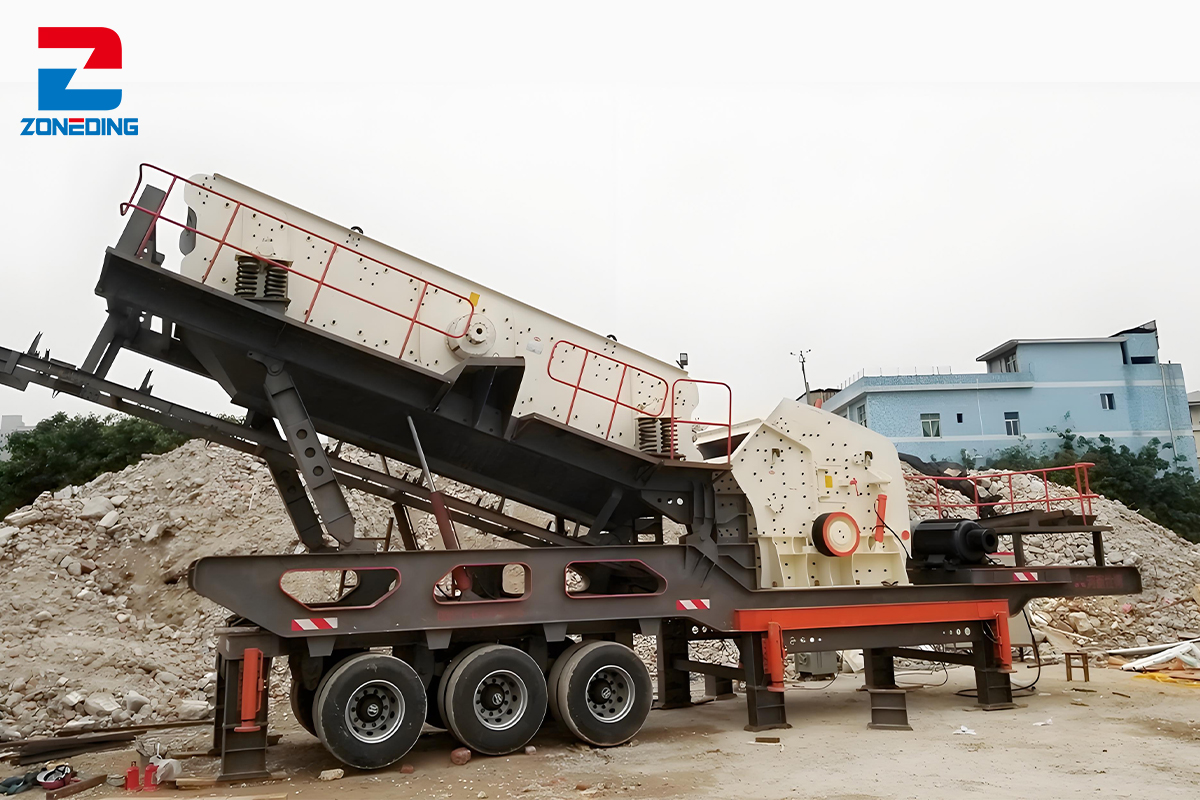

Mobile Impact Crusher

Impact crusher is widely used in the production of high grade stone materials used in highway, hydropower, artificial sand and stone, crushing, construction and other industries with its excellent performance.

VSI Sand Maker

Capacity

100-350 T/H

Max. Feeder Size(mm)

＜500

Output Size(mm)

5-180

Raw Materials: Medium-hard materials

limestone, concrete, asphalt wastes, etc.

WhatsApp Chat
Get A Quote Now

Table of Contents

Application

Mobile Impact Crusher is widely used in many fields:

Sand and gravel production: It is used to produce high-quality mechanism sand and aggregate, providing raw materials for construction, highway, railroad and other infrastructure construction.
Mining: In the process of mining, impact crusher can be used for fine crushing operation to improve the utilization rate and grade of ore.
Solid waste treatment: In the treatment of construction waste and waste concrete, impact crusher can realize the reuse of resources and promote the circular economy.

Application of Mobile Impact Crusher

Types Of Mobile Impact Crushers

Zoneding offers two types of mobile impact crushers: tire-type and crawler-type. Here’s a detailed introduction to each:

Tire-type
crawler-type

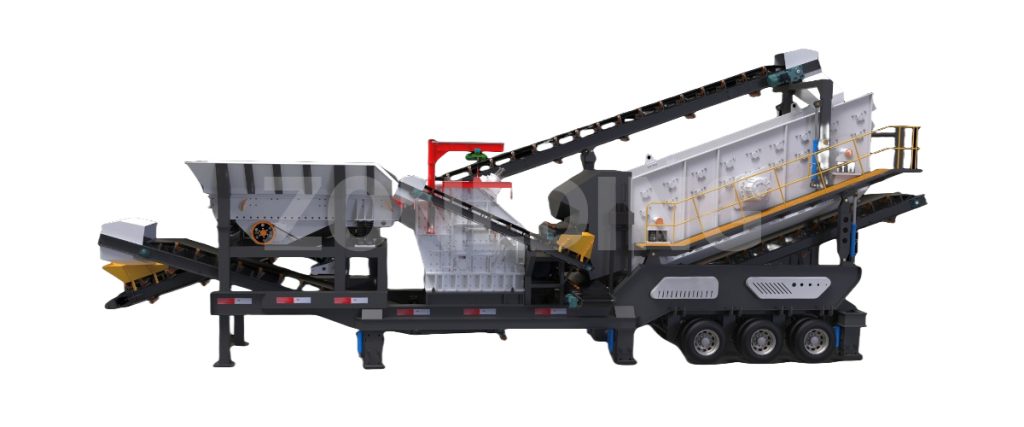

Wheeled Mobile Impact Crushing Plant

  1. Unit Integration : Superior performance of complete set, reasonable and compact configuration, low requirements for operating sites.
  2. Strong Mobility : Compact structure for the whole set, short turning radius, easy to go in & out and convert the working site.
  3. High Efficiency and Energy Saving : Large feeding port, high crushing chamber, high hardness for material, large block size, little product stone powder.

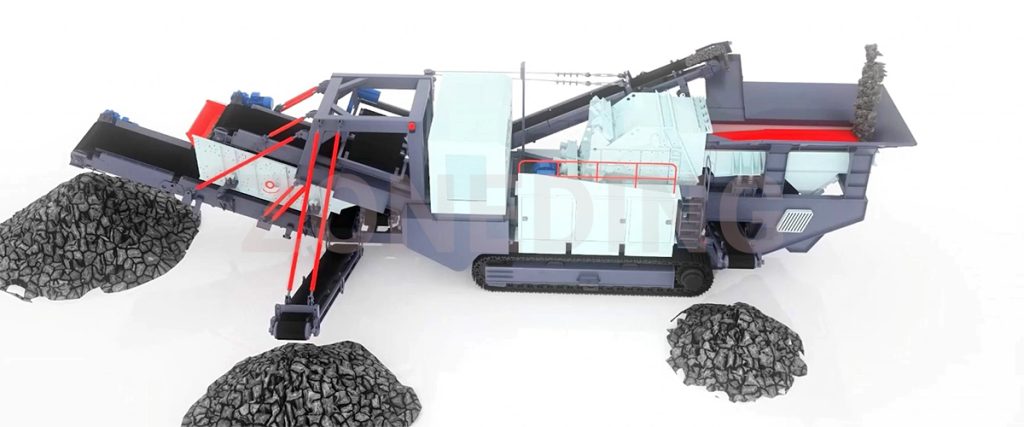

Crawler Mobile Impact Crusher Plant

  1. Closed or open circuit processes available
  2. Single unit for primary and secondary applications
  3. Processing of medium-hard stone like limestone
  4. All rock-based demolition materials : bricks, concrete, asphalt

How Does The Mobile Impact Crusher Work?

  • Loading: Raw materials are fed into the feed hopper through wheel loader or belt conveying.
  • Crushing: As the rotor spins, the materials are struck by hammers or blow bars in the impact crusher, causing them to break apart.
  • Screening: The crushed material passes through screens to sort sizes—finer materials fall through, while larger pieces continue to be crushed.
  • Discharge: The processed material is discharged via a conveyor system.

Advantages Of Mobile Impact Crusher

The machine adopts a hydraulic system to drive the tracks, thus realizing smooth walking and being able to adapt to a variety of complex work site conditions.

The integrated mobile unit can be matched with the crushing mainframe according to the customer’s demand. The bottom is equipped with tires for flexible transfer.

Advanced digital technology simplifies the operation process, and the hourly crushing capacity of 1 person is up to 1,000 tons.

The wearing parts are made of special material, super hardness surface wear resistance, long service life.

Customer Site

Peruvian customer’s mobile impact crusher site
Tracked Impact Crusher Site

Specification

Tire-type
crawler-type

tire-type impact crusher

Model ZDM938F1210 ZDM938FW1214 ZDM1149F1315 ZDM1349HD1110 ZDM1349HD1315
Transportation Length（mm） 12000 12000 13900 15450 15450
Transportation Width（mm） 2550 2550 2900 2950 2950
Transportation Height（mm） 3900 3900 4450 4500 4500
Maximum Length（mm） 12500 12500 13900 15450 15450
Maximum Width（mm） 3250 3260 3250 3250 3250
Maximum Height（mm） 5100 5200 5200 5200 5200
Weight（t） 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size（mm） 350 350 500 400 700
Production Capacity（t/h） 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) （kw） 320 320 400 320 440
Iron Separator (Optional)（kw） RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

crawler-type impact crusher

Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power ○ 6.12kw ○ 6.12kw ○
Sieve Dimensions ○ 1500×3600 ○ 1500×4200 ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ 1000×5800mm ○ 1000×6200mm ○
Dumping Height ○ 2900mm ○ 3000mm ○
Transferring Belt Conveyor Dimensions(Width×Length) ○ 650×2500mm ○ 650×2800mm ○
Dumping Height ○ 1400mm ○ 1400mm ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ 500×8000mm ○ 500×9200mm ○
Dumping Height ○ 4200mm ○ 4500mm ○
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
