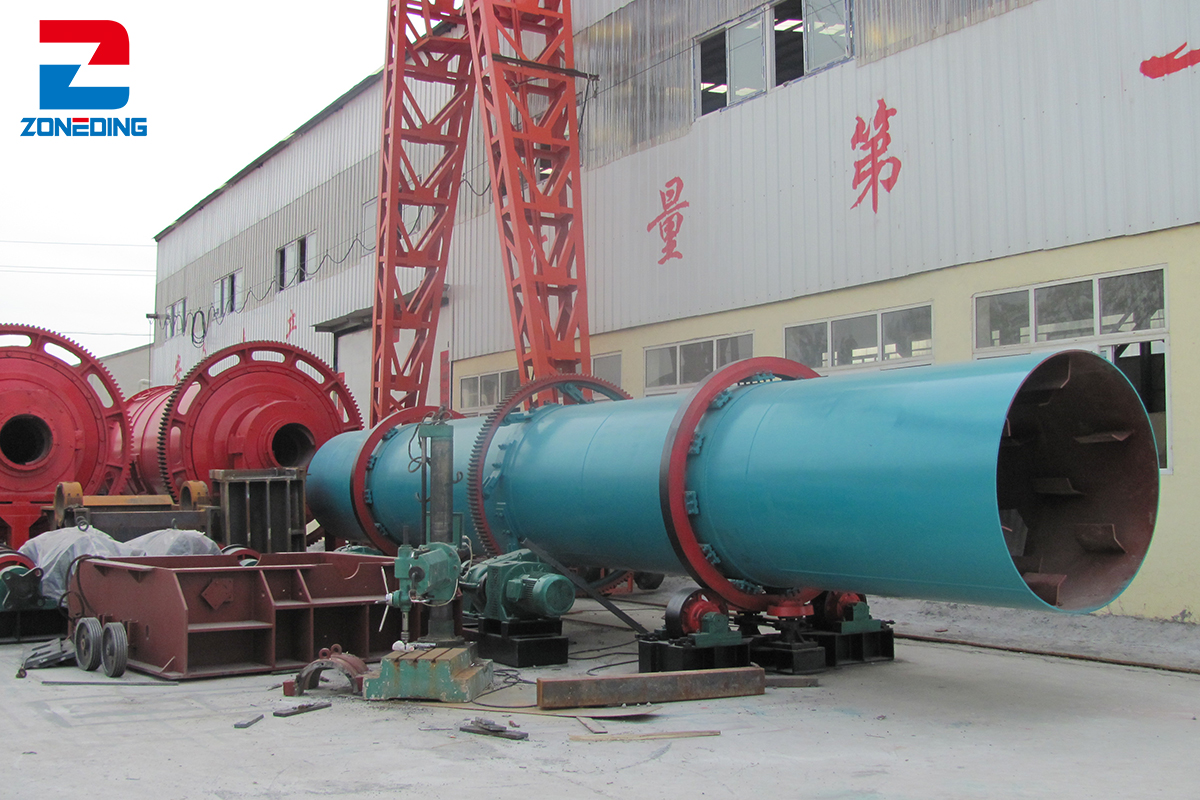

Sludge Dryer
Zoneding Company conducted technical research on sludge treatment, created a new generation of sludge rotary drum drying system that can reduce product moisture to less than 25%, with mature technology and easy operation and maintenance.
Moisture Reduction
40-75%
Capacity
1.9-76.0 t/h
Heat Source
biomass, natural gas, diesel, coal, etc.
Application
Widely used for drying sludge, slurry, ETP sludge, Slime, Paper pulp, Pomace Sludge, etc.
Sludge Dryer Wide Application
The sludge dryer is suitable for drying activated sludge, sewage sludge, petrochemical sludge, papermaking sludge, printing and dyeing sludge, tanning sludge, electroplating sludge, municipal sludge, biological fermentation sludge, etc. Besides, it is also applied to coal sludge drying, coal slurry drying, etc.
Features of Coal Drying Machine
1. Good drying effect, uniform drying degree
2. Large processing capacity, high work efficiency
3. Energy saving, environmental protection, less fuel consumption
4. Compact structure, simple operation
5. Meet the production needs of different users.
Sludge Rotary Dryer Working Principle
Firstly, high moisture sludge is dewatered by the dewatering machine, then transported to the rotary drum dryer by the belt conveyor, where it fully contacts with the hot air. With the running of the rotary dryer, sludge with hot air moves to the end of dryer body. After drying, most of the dry materials will be discharged through the belt conveyor, the left material will go into the cyclone dust collector, where the dust will be collected, and then discharged through the conveyor.
Advantages of Slurry Dryer
1. Strong overload resistance, large processing capacity, low fuel consumption and low drying cost.
2. Adopt computer automatic control, which can realize remote control and easy operation.
3. The specially designed retaining wheel structure greatly reduces the horizontal thrust caused by the tilting of the drying equipment.
4. Multiple heating sources to be selection.
Customer site
Specification
Sludge Dryer
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity(%) | Highest Inlet Air Temperature(℃) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
