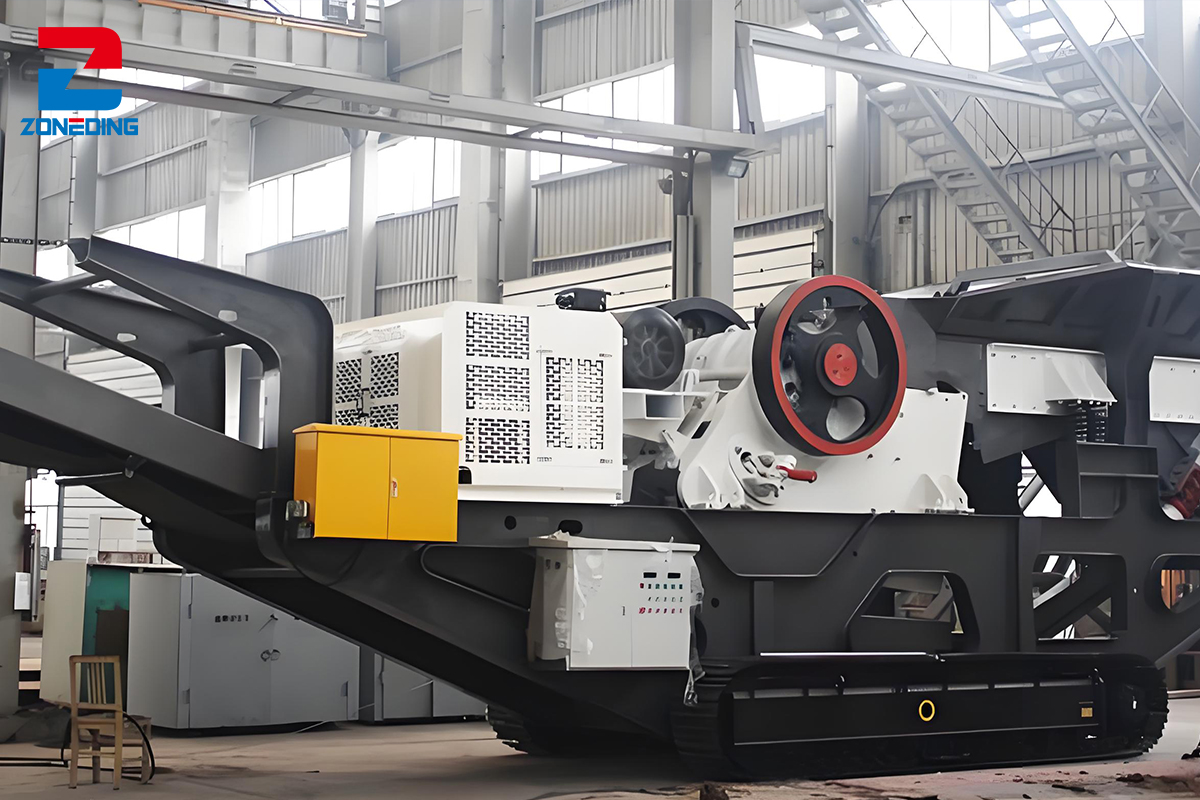

Track Crusher
Track crusher, also known as crawler crusher, is a type of mobile crushing machine, which commonly used in applications such as quarrying, mining, demolition, and recycling, where the ability to crush and process materials on-site is essential for improving efficiency and reducing transportation costs.
Feeding size:
350-700 mm
Processing capacity:
100-580 t/h
Application fields
mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.
Application of crawler crusher
Track Crusher can process those materials such as river gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue, which can be widely used in the following fields such as aggregate field, concrete mixing plant, dry mortar plant, desulfurization, quartz sand, etc.
Different Types of Track Crusher Equipment
There are many areas in which crawler crushers can be used. Depending on the working environment and the characteristics of the raw materials, you can choose crawler jaw, impact or cone crusher. Each type has its own unique characteristics and applications.
Tracked Impact Crusher
It is a crawler-type jaw crusher that travels on a crawler chassis with a fully hydraulic drive. It adopts intelligent technology and self-propelled action to further It solves the time-consuming and labor-intensive construction of foundations. Zoneding only needs a remote control to mobilize the equipment and enter and exit the factory at will. The crawler jaw crusher equipment of Random Mining Machinery can start working as soon as it arrives at the site. It has quick results and large output. The key is to ensure quality.
Crawler Mobile Cone Crusher
The tracked cone crusher equipment we manufacture is designed for efficient stone recycling. It includes a feeder to input raw materials, a cone crusher, and optional vibrating screening equipment for continuous, eco-friendly operations. The setup is customizable with auxiliary equipment for flexible and convenient use.
Tracked Impact Crusher
This machine mainly consists of hopper, vibrating feeder, primary crushing equipment, conveyer belt, multilayer screen, medium crushing equipment, fine crushing equipment, movable belt conveyor, sand washer & washing apparatus and electric controlling equipment.
Advantages of crawler crusher
1. Flexible combination and strong adaptability.
2. Reduce transportation costs and high recycling.
3. The crushing effect is excellent, but the premise is to have process technology.
4. It can work on slopes and meet the crushing requirements of mines, hydropower stations, coal mines and other projects.
5. Light weight, small size, suitable for working in narrow/spacious sites.

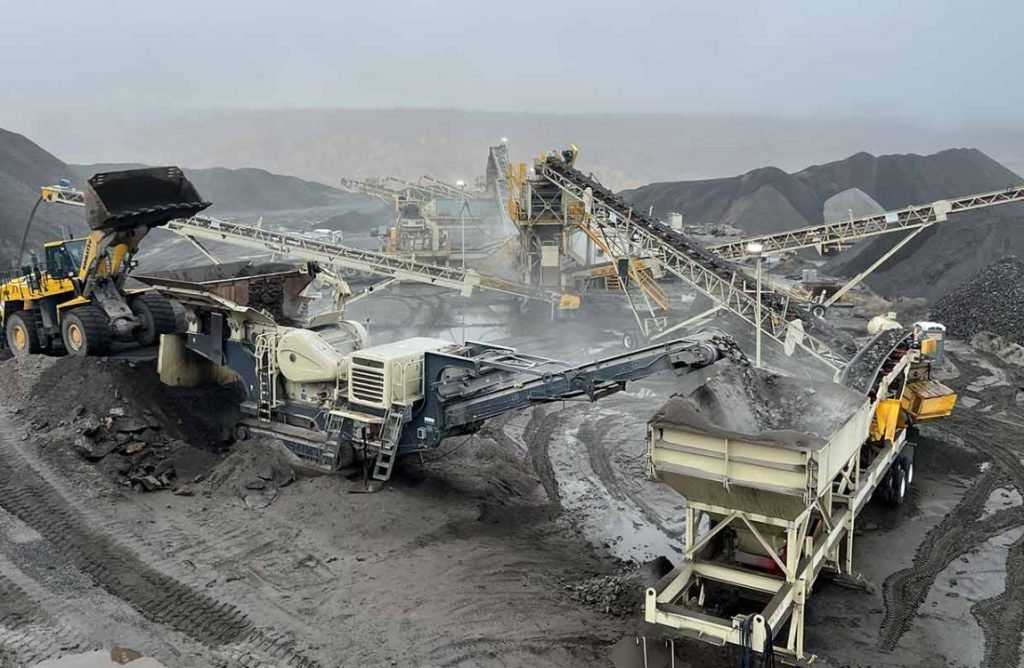

Customer Site
Specification
Track Crusher
| Crawler-type mobile primary shredding station | ||||
| model | Device configuration | Adjustable Drain Range (mm) | Capacity (t/h) | Transport Dimensions (mm) |
| Model SE69L | ZSW3896+PE69 | 60-125 | 100-180 | Approx. 12500 x 2950 x 3000 |
| SC96L | ZSW3896+SC96 | 60-175 | 120-455 | 13500 x 3400 x 2800 |
| SC106L | ZSW4211+SC106 | 70-200 | 155-580 | 14400 x 3600 x 3000 |
| Crawler mobile secondary and tertiary crushing plant | ||||
| model | Device configuration | Minimum drain (mm) | Processing capacity (t/h) | Transmission size (mm) |
| SH43L | ZP100+SH430 | ≤25 | 63- 305 | Approx. 13000 x 2800 x 3420 |
| SH300L | ZP1000+SHP300 | ≤45 | 120- 445 | Approx. 14800 x 3000 x 3700 |
| Crawler mobile screening equipment | ||||
| model | Device configuration | Maximum feed size (mm) | Mesh size (mm) | Processing capacity (t/h) |
| S5X18L | 5X1860 | 400 | 5-80 | 75-600 |
| S5X21L | 5X2160 | 400 | 5-80 | 85-700 |
